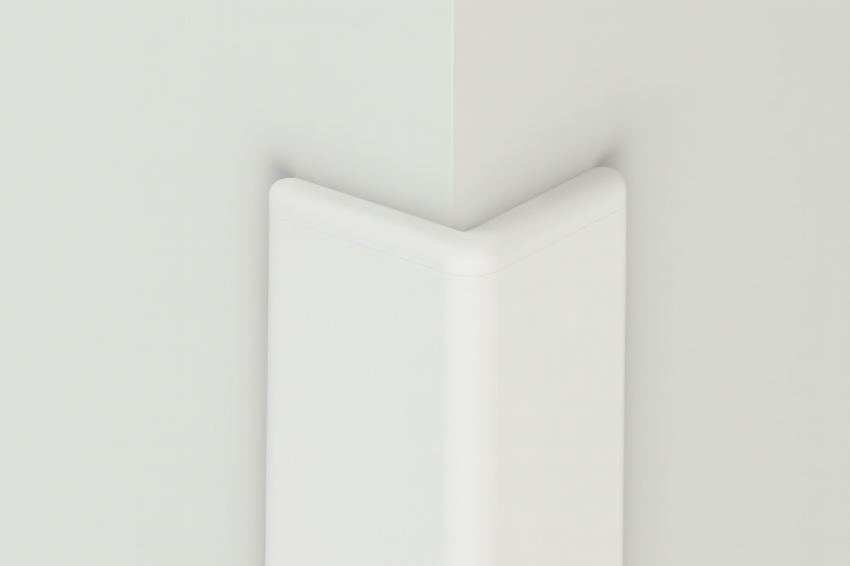

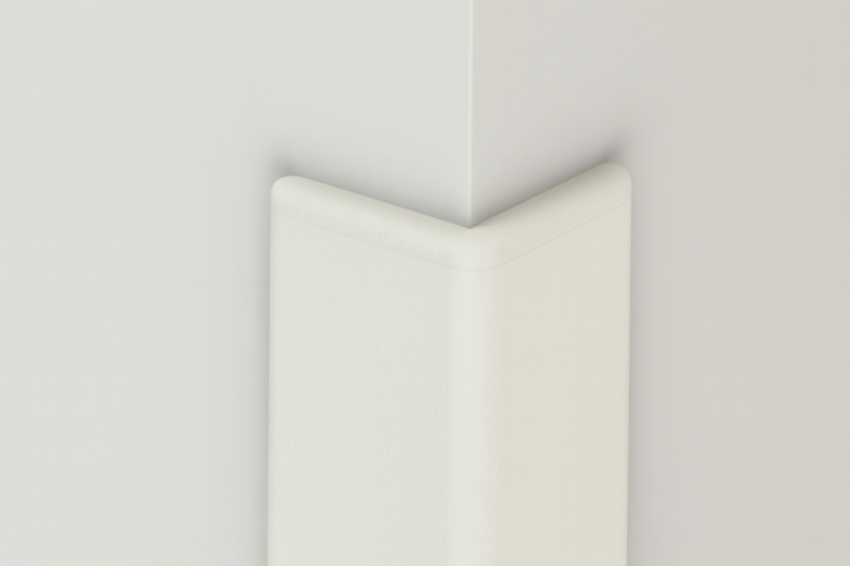

Reinforced 90° corner / Reinforced corner guard
The reinforced wall corner guard protects against accidental damage or scratches.
The construction in the ALU version is made by combining an aluminum core with a shock-absorbing PVC cover. The economical PLAST version features a PVC core. Thanks to this design, the corner guard effectively absorbs even strong impacts in high-traffic areas.
- Watch the product:
- Code: NW50K10P10AL
- Sold: 104 pc
- Manufacturer's code: 5906551822168
-
- Net Price: 39.60 zł 48.71 zł
- pc
-
Payment in cash, Payment via bank transfer, BLIK, e-przelewy i karty płatnicze
We ship the product within 10 days of receiving payment.
We complete the order within 24 hours.
The product comes with a one-year warranty.
Returns accepted within 14 days
Heavy-Duty Wall Corner Guard provides excellent protection against accidental impacts, scratches and structural damage. The ALU version combines an aluminium core with a shock-absorbing PVC cover, while the economical PLAST version features a rigid PVC core. This construction allows the corner guard to absorb even heavy impacts in high-traffic areas. It is particularly suitable for locations exposed to damage from equipment such as hospital beds, transport carts and trolleys. We also offer wall protection sheets, wall handrails and flat wall bumper rails, creating a complete wall protection system.
Heavy-Duty 90-Degree Corner Guard
The heavy-duty corner guard is a dual-layer profile in which a rigid core carries the load while the outer PVC layer absorbs impact energy.
The profile is available in 50 × 50 mm and 70 × 70 mm sizes and in 34 colours from the ACRAMIT colour chart.
The dual-layer construction distinguishes this model from solid single-material profiles that may crack or detach from the wall when subjected to strong impacts.
ALU or PLAST – What Is the Difference?
Both versions have identical dimensions and appearance. The only difference is the core material.
| Version | Core Material | Performance Characteristics | Typical Applications |
|---|---|---|---|
| ALU | Aluminium | The core resists permanent deformation under concentrated loads | Transport routes, corridors with trolleys and equipment traffic |
| PLAST | PVC | Cost-effective version with lower core rigidity | Corridors with moderate traffic intensity |
The appropriate version should be selected according to the expected level of impact. The aluminium core increases resistance to collisions with hard objects, while the PVC outer layer remains identical in appearance and thickness in both variants.
Why Does Mechanical Fixing Change the Application of the Profile?
The heavy-duty corner guard is installed using wall anchors rather than adhesive tape or mounting adhesive.
This mechanical connection transfers impact forces from the profile directly to the wall structure, allowing the corner guard to remain securely in place even after repeated contact with transport carts or hospital beds.
Under the same conditions, adhesive-mounted profiles may detach from the surface because the entire load is transferred through the adhesive layer.
The system is complemented by matching end caps available in our bumper rail and handrail accessories, providing a clean and professional finish to exposed profile ends.
When Should You Choose a Different Corner Guard?
A heavy-duty corner guard solves the problem of mechanical impacts, not personal safety.
In nurseries, schools and sports halls, the FAT flexible corner guard may be a better solution. Its soft elastomer construction and rounded profile reduce the risk of injury during contact.
Areas without trolley traffic can be protected more economically with the ACRAMIT fixed corner guard, which can be installed using adhesive tape or mounting adhesive. Areas requiring a highly durable technical surface are better suited to a stainless steel corner guard.
Technical Specifications
| Construction | Two-layer construction, core with PVC outer layer |
|---|---|
| Variants | ALU with aluminium core, PLAST with PVC core |
| PVC Layer Thickness | TO BE COMPLETED |
| Core Thickness | TO BE COMPLETED |
| Angle | 90° |
| Available Profile Sizes | 50 x 50 mm, 70 x 70 mm |
| Function | Wall corner protection and impact absorption |
| Available Lengths | 1 m, 1.5 m |
| Custom Cutting | From 0.5 m to 3.0 m |
| Installation Method | Wall anchors / fixing plugs |
| Accessories | Profile end caps |
| Number of Colours | 34 |
| Lead Time | 10 working days |
| Product Code | NW50K10P10AL |
| Manufacturer Code (EAN) | 5906551822168 |
| Manufacturer | Polmar Profil Sp. z o.o., Lubliniec, Poland |
For lengths exceeding 1.5 m, please contact us by email for a quotation.
The wall surface should be even, stable, dry, and free from dust, grease, and loose particles. If necessary, the substrate should be primed.
No. For installation, you can use high-quality mounting adhesives designed for PVC, which are widely available at home improvement stores and building supply outlets.
Yes. Acramit protective corner guards possess the required documentation for use in public facilities, including a Hygienic Certificate from the National Institute of Public Health (PZH).
Yes. We offer a service for cutting corner profiles to any custom length between 0.5 and 3.0 meters. Billing is based on the next largest standard length. For example, if you order a corner profile with a length of 1.7 meters, you will be charged for a 2.0-meter piece and will also receive the remaining offcut.
Yes. The corner pieces can be cut to size using a professional table saw equipped with a blade designed for cutting PVC or aluminum, which ensures an aesthetically pleasing edge finish.
